含多通道不同流向旋转输流管动力学特性分析

张博; 王毅琛; 蔡承宇; 丁虎; 陈立群

doi:10.21656/1000-0887.440359

含多通道不同流向旋转输流管动力学特性分析

doi: 10.21656/1000-0887.440359

张博^1,,
王毅琛¹,
蔡承宇¹,
丁虎²,
陈立群^2, ,

1.
长安大学理学院，西安 710064
2.
上海大学上海市应用数学和力学研究所，上海 200072

我刊编委陈立群来稿

基金项目:

国家自然科学基金 11702033

国家自然科学基金 11872159

陕西省自然科学基金 2022JQ-019

上海市教委创新项目 2017-01-07-00-09-E00019

长安大学中央高校基本科研业务费专项资金 300102123201

详细信息

作者简介:
张博(1989—)，男，副教授，博士，硕士生导师(E-mail: zhang_bo@chd.edu.cn)

通讯作者:
陈立群(1963—)，男，教授，博士，博士生导师(通讯作者. E-mail: lqchen@shu.edu.cn)

中图分类号: O32
计量
- 文章访问数: 71
- HTML全文浏览量: 19
- PDF下载量: 18
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-19
- 修回日期: 2024-05-11
- 刊出日期: 2025-04-01

Analysis on Dynamic Characteristics of Rotating Flow Tubes With Multi-Channel and Different Flow Directions

1.
School of Sciences, Chang'an University, Xi'an 710064, P.R.China
2.
Shanghai Institute of Applied Mathematics and Mechanics, Shanghai University, Shanghai 200072, P.R.China

Contributed by CHEN Liqun, M.AMM Editorial Board

摘要

摘要: 涡轮叶片是燃气轮机输出动力的关键部件, 为了叶片在高温环境下可以正常工作, 需要在内部设置冷却管通道. 叶片在内部流体和自身旋转的共同作用下, 有着复杂的动力学行为. 将叶片简化为多通道不同流向的旋转输流管的开放模型, 使用能量法推导动力学方程, 并进行复模态分析. 通过算例研究, 揭示了流向、流速和转速对系统稳定性和模态转迁的影响.
- 旋转输流管 /
- 假设模态法 /
- 失稳临界流速 /
- 模态转迁 /
- 稳定性
Abstract: Turbine blades were the key components for gas turbine power output. To work normally in high temperature environment, cooling tube channels need be set inside the blades. The blade has complex dynamic behaviors under the joint action of internal fluid and its own rotation. The blade was simplified into a rotating pipe conveying fluid tube with multi-channel and different flow directions. The kinetic equation was derived with the energy method and the complex modal analysis was carried out. The effects of the flow direction, the velocity and the rotating speed on the stability and modal transition phenomena of the system were revealed with numerical examples.
- rotating flow tube /
- assumed mode method /
- critical velocity of instability /
- mode transition /
- stability
edited-by

edited-by
注释:

1) 我刊编委陈立群来稿

HTML全文

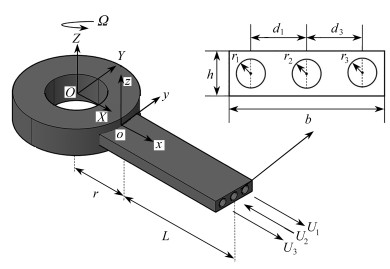

图 1 含三条通道旋转输流管模型

Figure 1. The model for the rotating pipe conveying fluid with 3 channels

下载: 全尺寸图片幻灯片

图 2 单通道模型下流速对前三阶固有频率的影响(Ω=0)

Figure 2. Effects of the flow velocity on the 1st 3 natural frequencies in a single channel model (Ω=0)

下载: 全尺寸图片幻灯片

图 3 单通道模型下转速对特征轨迹的影响

Figure 3. Influences of the rotational speed on characteristic trajectories with the single-channel model

下载: 全尺寸图片幻灯片

图 4 不同单位长度流体质量下，屈曲临界流速随转速的变化规律

Figure 4. Influences of the rotational speed on the critical buckling velocity of the single channel pipe

下载: 全尺寸图片幻灯片

图 5 不同单位长度流体质量下，颤振临界流速随转速的变化规律

Figure 5. Effects of the rotational speed on the critical flutter velocity of the single channel pipe

下载: 全尺寸图片幻灯片

图 6 流速对前三阶固有频率的影响(Ω=4)

Figure 6. The influences of the flow velocity on the 1st 3 natural frequencies (Ω=4)

下载: 全尺寸图片幻灯片

图 7 不同流速下，系统第二、三阶振型

Figure 7. The 2nd and 3rd order modal shapes of the system at different flow rates

下载: 全尺寸图片幻灯片

图 8 三通道模型下中间管道流体质量对前三阶特征轨迹的影响

Figure 8. Influences of the fluid mass in the intermediate pipeline on the 1st 3 order characteristic trajectories

下载: 全尺寸图片幻灯片

图 9 三通道模型下转速对前三阶特征轨迹的影响

Figure 9. Influences of rotational speed on the 1st 3 order characteristic trajectories in three-channel model

下载: 全尺寸图片幻灯片

表 1 系统前三阶固有频率的本文计算值与有限元软件对比(ρ_f=0)

Table 1. The calculated values of the 1st 3 natural frequencies of the system compared with the finite element software (ρ_f=0)

parameter	Ω=0			Ω=3
parameter	1st mode	2nd mode	3rd mode	1st mode	2nd mode	3rd mode
ω(present paper)	3.71	23.23	65.05	4.73	25.05	67.04
ω(COMSOL)	3.70	22.78	62.14	4.73	24.64	64.22
error /%	0.27	1.94	4.47	0	1.64	4.21

parameter	Ω=5			Ω=8
parameter	1st mode	2nd mode	3rd mode	1st mode	2nd mode	3rd mode
ω(present paper)	6.08	27.98	70.41	8.38	34.03	77.93
ω(COMSOL)	6.10	27.63	67.75	8.53	33.84	75.64
error /%	-0.33	1.25	3.78	-1.79	0.56	2.94

下载: 导出CSV

参考文献(33)

[1]	HAN J C. Turbine blade cooling studies at Texas A&M University: 1980-2004[J]. Journal of Thermophysics and Heat Transfer, 2006, 20 (2): 161-187. doi: 10.2514/1.15403
[2]	蒋洪德, 任静, 李雪英, 等. 重型燃气轮机现状与发展趋势[J]. 中国电机工程学报, 2014, 34 (29): 5096-5102. JIANG Hongde, REN Jing, LI Xueying, et al. Status and development trend of the heavy duty gas turbine[J]. Proceedings of the CSEE, 2014, 34 (29): 5096-5102. (in Chinese)
[3]	张效伟, 朱惠人. 大型燃气涡轮叶片冷却技术[J]. 热能动力工程, 2008, 23 (1): 1-6. ZHANG Xiaowei, ZHU Huiren. Blade cooling technology of heavy-duty gas turbines[J]. Journal of Engineering for Thermal Energy and Power, 2008, 23 (1): 1-6. (in Chinese)
[4]	CARNEGIE W. Vibrations of rotating cantilever blading: theoretical approaches to the frequency problem based on energy methods[J]. Journal of Mechanical Engineering Science, 1959, 1 : 235-240. doi: 10.1243/JMES_JOUR_1959_001_028_02
[5]	LINER H S. The natural frequencies and modes of vibration of a rotating beam[J]. The Aeronautical Journal, 1954, 58 (525): 652-654.
[6]	PORAT I, NIV M. Vibration of a rotating shaft by the "Timoshenko beam" theory[J]. Israel Journal of Technology, 1971, 9 (5): 535-546.
[7]	MCIVER D B. Hamilton's principle for systems of changing mass[J]. Journal of Engineering Mathematics, 1973, 7 (3): 249-261. doi: 10.1007/BF01535286
[8]	HODGES D H, RUTKOWSKI M J. Free-vibration analysis of rotating beams by a variable-order finite-element method[J]. AIAA Journal, 1981, 19 (11): 1459-1466. doi: 10.2514/3.60082
[9]	PAÏDOUSSIS M P, ISSID N T. Dynamic stability of pipes conveying fluid[J]. Journal of Sound and Vibration, 1974, 33 (3): 267-294. doi: 10.1016/S0022-460X(74)80002-7
[10]	BENJAMIN T B. Dynamics of a system of articulated pipes conveying fluid-Ⅰ: theory[J]. Proceedings of the Royal Society A, 1961, 261 (1307): 457-486.
[11]	YANG J B, JIANG L J, CHEN D C. Dynamic modelling and control of a rotating Euler-Bernoulli beam[J]. Journal of Sound and Vibration, 2004, 274 (3/4/5): 863-875.
[12]	PANUSSIS D A, DIMAROGONAS A D. Linear in-plane and out-of-plane lateral vibrations of a horizontally rotating fluid-tube cantilever[J]. Journal of Fluids and Structures, 2000, 14 (1): 1-24.
[13]	易浩然, 周坤, 代胡亮, 等. 含集中质量悬臂输流管的稳定性与模态演化特性研究[J]. 力学学报, 2020, 52 (6): 1800-1810. YI Haoran, ZHOU Kun, DAI Huliang, et al. Stability and mode evolution characteristics of a cantilevered fluid-conveying pipe attached with the lumped mass[J]. Chinese Journal of Theoretical and Applied Mechanics, 2020, 52 (6): 1800-1810. (in Chinese)
[14]	赵桂欣, 孟帅, 车驰东, 等. 解释自由端含集中质量悬臂输流管固有频率计算悖论[J]. 振动与冲击, 2023, 42 (7): 18-24. ZHAO Guixin, MENG Shuai, CHE Chidong, et al. Explanation for paradox in natural frequency calculation of cantilever fluid-conveying pipe system with an end-mass[J]. Journal of Vibration and Shock, 2023, 42 (7): 18-24. (in Chinese)
[15]	徐鉴, 杨前彪. 流体诱发水平悬臂输液管的内共振和模态转换(Ⅱ)[J]. 应用数学和力学, 2006, 27 (7): 825-832. http://www.applmathmech.cn/article/id/755 XU Jian, YANG Qianbiao. Flow-induced internal resonances and mode exchange in horizontal cantilevered pipe conveying fluid(Ⅱ)[J]. Applied Mathematics and Mechanics, 2006, 27 (7): 825-832. (in Chinese) http://www.applmathmech.cn/article/id/755
[16]	黄慧春, 张艳雷, 陈立群. 超临界下受迫输液管2∶1内共振的响应特性[J]. 噪声与振动控制, 2014, 34 (2): 8-11. HUANG Huichun, ZHANG Yanlei, CHEN Liqun. Resonance analysis of a forced fluid-conveying pipe with 2∶1 internal resonances under supercritical fluid velocity[J]. Noise and Vibration Control, 2014, 34 (2): 8-11. (in Chinese)
[17]	CHEN L Q, ZHANG Y L, ZHANG G C, et al. Evolution of the double-jumping in pipes conveying fluid flowing at the supercritical speed[J]. International Journal of Non-Linear Mechanics, 2014, 58 : 11-21.
[18]	张国策, 丁虎, 陈立群. 复模态分析超临界轴向运动梁横向非线性振动[J]. 动力学与控制学报, 2015, 13 (4): 283-287. ZHANG Guoce, DING Hu, CHEN Liqun. Complex modal analysis of transversally non-linear vibration for supercritically axially moving beams[J]. Journal of Dynamics and Control, 2015, 13 (4): 283-287. (in Chinese)
[19]	张凯凯, 谭霞, 丁虎, 等. 超临界输流管道3∶1内共振下参激振动响应[J]. 应用数学和力学, 2018, 39 (11): 1227-1235. doi: 10.21656/1000-0887.390121 ZHANG Kaikai, TAN Xia, DING Hu, et al. Parametric vibration responses of supercritical fluid-conveying pipes in 3∶1 internal resonance[J]. Applied Mathematics and Mechanics, 2018, 39 (11): 1227-1235. (in Chinese) doi: 10.21656/1000-0887.390121
[20]	LIANG F, YANG X D, QIAN Y J, et al. Transverse free vibration and stability analysis of spinning pipes conveying fluid[J]. International Journal of Mechanical Sciences, 2018, 137 : 195-204.
[21]	YOON H I, SON I S. Dynamic response of rotating flexible cantilever pipe conveying fluid with tip mass[J]. International Journal of Mechanical Sciences, 2007, 49 (7): 878-887.
[22]	BAHAADINI R, SAIDI A R, HOSSEINI M. Dynamic stability of fluid-conveying thin-walled rotating pipes reinforced with functionally graded carbon nanotubes[J]. Acta Mechanica, 2018, 229 (12): 5013-5029.
[23]	张博, 史天姿, 张贻林, 等. 旋转输液管动力稳定性理论分析[J]. 应用数学和力学, 2022, 43 (2): 166-175. ZHANG Bo, SHI Tianzi, ZHANG Yilin, et al. Theoretical analysis on dynamic stability of rotating pipes conveying fluid[J]. Applied Mathematics and Mechanics, 2022, 43 (2): 166-175. (in Chinese)
[24]	杨佳丽, 杨虹, 李伟. 旋转Timoshenko输流管道的固有频率和稳定性分析[J]. 动力学与控制学报, 2023, 21 (2): 58-65. YANG Jiali, YANG Hong, LI Wei. Natural frequency and stability analysis of rotating Timoshenko pipe conveying fluid[J]. Journal of Dynamics and Control, 2023, 21 (2): 58-65. (in Chinese)
[25]	马永奇, 沈义俊, 尤云祥, 等. 附加重块和弹簧刚度对垂直悬臂输流管动力学稳定性的影响研究[J]. 中国造船, 2023, 64 (3): 212-222. MA Yongqi, SHEN Yijun, YOU Yunxiang, et al. Dynamic stability analysis with additional masses and springs stiffness in vertical cantilevered pipes conveying fluid[J]. Shipbuilding of China, 2023, 64 (3): 212-222. (in Chinese)
[26]	郭勇. 具有非对称横截面的悬臂输流管道的非线性振动特征[J]. 动力学与控制学报, 2023, 21 (11): 81-94. GUO Yong. Nonlinear vibration characteristics of cantilevered fluid-conveying pipe with asymmetric cross-section[J]. Journal of Dynamics and Control, 2023, 21 (11): 81-94. (in Chinese)
[27]	唐冶, 高传康, 丁千, 等. 输流管道动力学与控制的最新进展[J]. 动力学与控制学报, 2023, 21 (6): 18-30. TANG Ye, GAO Chuankang, DING Qian, et al. Review on dynamic and control of pipes conveying fluidan[J]. Journal of Dynamics and Control, 2023, 21 (6): 18-30. (in Chinese)
[28]	BALKAYA M, KAYA M O, SAGLAMER A. Free transverse vibrations of an elastically connected simply supported twin pipe system[J]. Structural Engineering and Mechanics, 2010, 34 (5): 549-561.
[29]	WANG P F, ZHAO W S, JIANG J, et al. Experimental and numerical investigations of flow-induced vibration of tube arrays subjected to cross flow[J]. International Journal of Pressure Vessels and Piping, 2019, 176 : 103956.
[30]	GAO P, ZHANG Y, LIU X, et al. Vibration analysis of aero parallel-pipeline systems based on a novel reduced order modeling method[J]. Journal of Mechanical Science and Technology, 2020, 34 (8): 3137-3146.
[31]	GUO X M, GE H, XIAO C L, et al. Vibration transmission characteristics analysis of the parallel fluid-conveying pipes system: numerical and experimental studies[J]. Mechanical Systems and Signal Processing, 2022, 177 : 109180.
[32]	GUO X M, XIAO C L, MA H, et al. Improved frequency modeling and solution for parallel liquid-filled pipes considering both fluid-structure interaction and structural coupling[J]. Applied Mathematics and Mechanics(English Edition), 2022, 43 (8): 1269-1288.
[33]	张博, 郑昊楷, 孙东生, 等. 双通道旋转输流管临界流速和振动模态分析[J]. 力学学报, 2023, 55 (1): 182-191. ZHANG Bo, ZHENG Haokai, SUN Dongsheng, et al. Theoretical analysis on the critical flow velocity and vibration mode of a twin-channel rotating pipe[J]. Chinese Journal of Theoretical and Applied Mechanics, 2023, 55 (1): 182-191. (in Chinese)
