Analysis of Turbulent Vibration Responses of Wire-Wrapped Fuel Rods in Lead-Bismuth Fluids

ZHANG Ke; WANG Yuancen; HUANG Qian; LIU Jian; ZHANG Yixiong; YU Xiaofei; QI Huanhuan

doi:10.21656/1000-0887.450123

Volume 46 Issue 6

Jun. 2025

Turn off MathJax

Article Contents

Article Navigation > Applied Mathematics and Mechanics > 2025 > 46(6): 730-741

ZHANG Ke, WANG Yuancen, HUANG Qian, LIU Jian, ZHANG Yixiong, YU Xiaofei, QI Huanhuan. Analysis of Turbulent Vibration Responses of Wire-Wrapped Fuel Rods in Lead-Bismuth Fluids[J]. Applied Mathematics and Mechanics, 2025, 46(6): 730-741. doi: 10.21656/1000-0887.450123

Citation:

PDF( 5462 KB)

Analysis of Turbulent Vibration Responses of Wire-Wrapped Fuel Rods in Lead-Bismuth Fluids

doi: 10.21656/1000-0887.450123

Analysis of Turbulent Vibration Responses of Wire-Wrapped Fuel Rods in Lead-Bismuth Fluids

Received Date: 2024-05-06
Rev Recd Date: 2024-11-01

Available Online: 2025-06-30

Abstract

Abstract

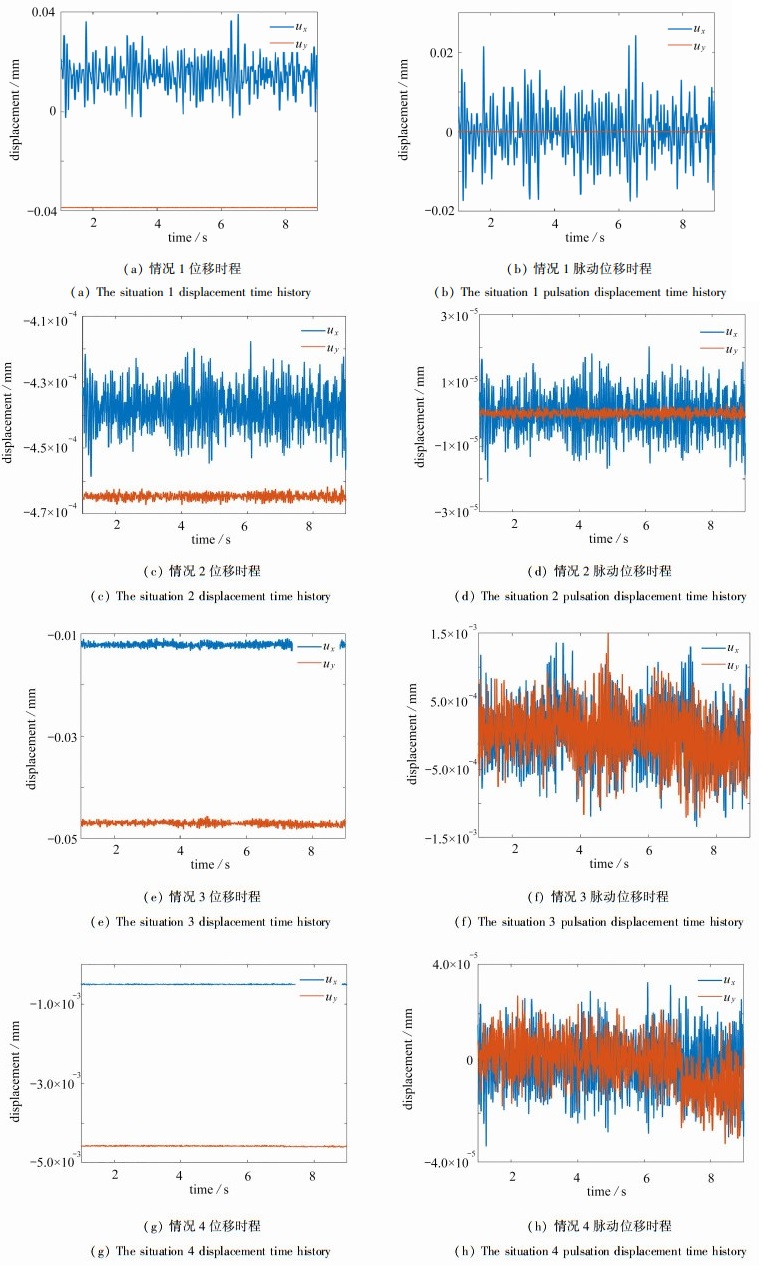

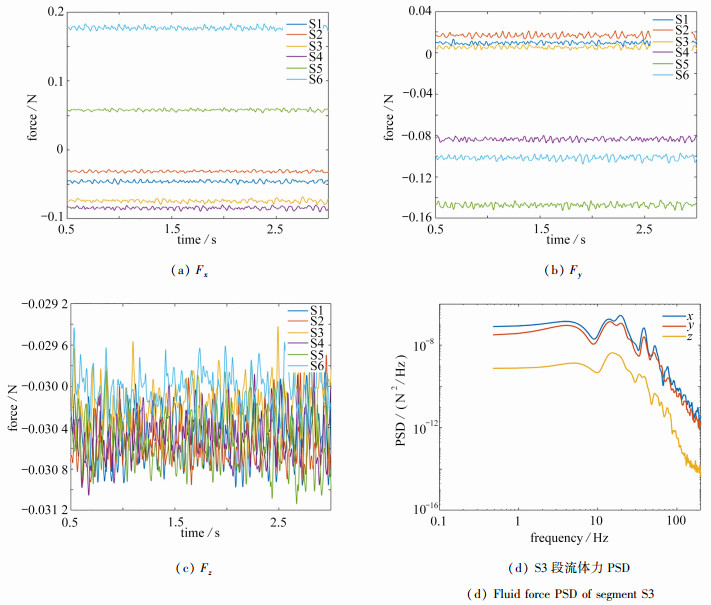

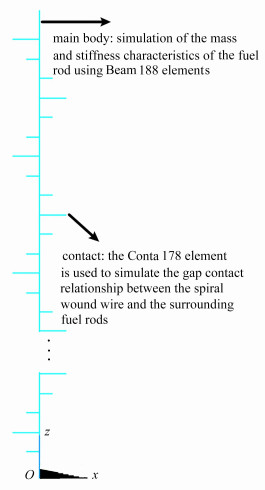

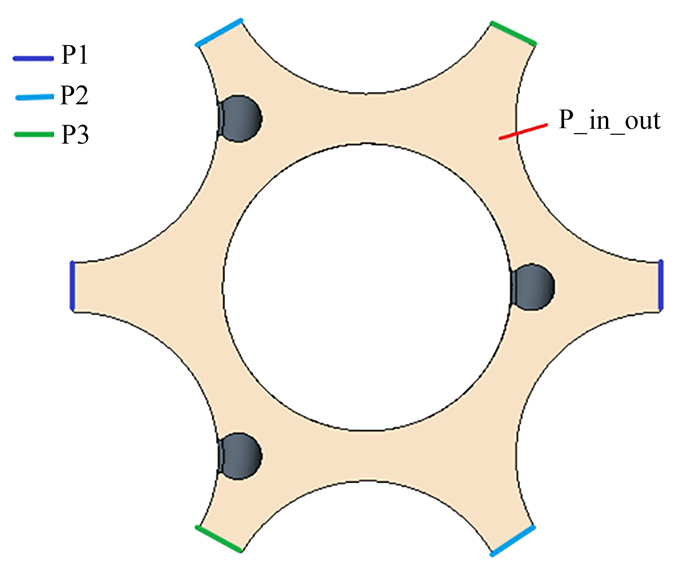

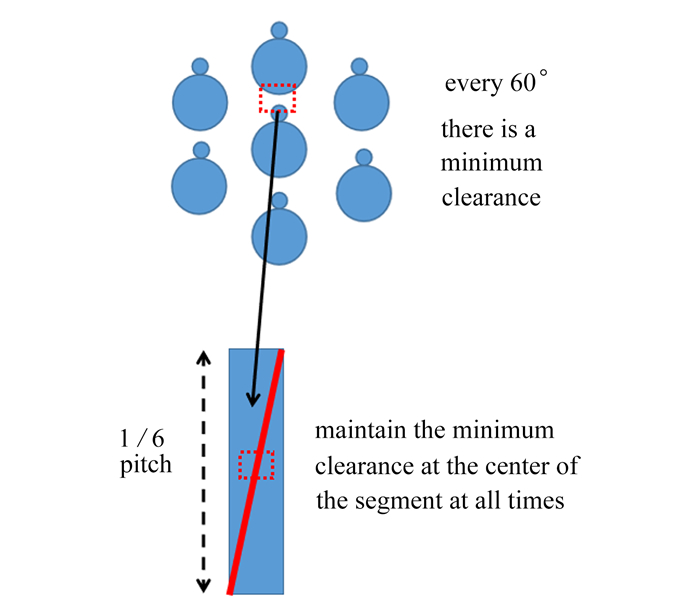

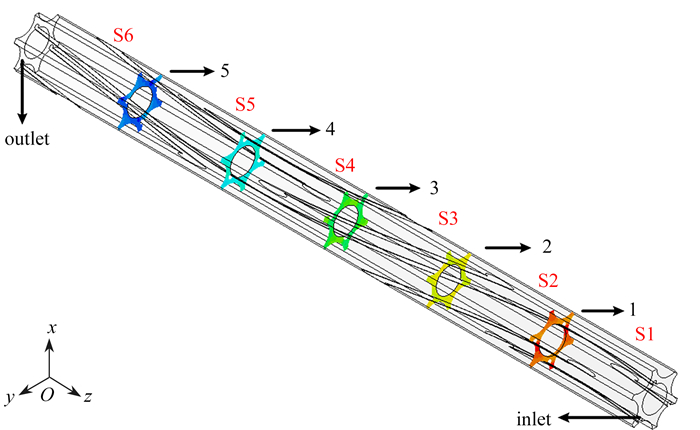

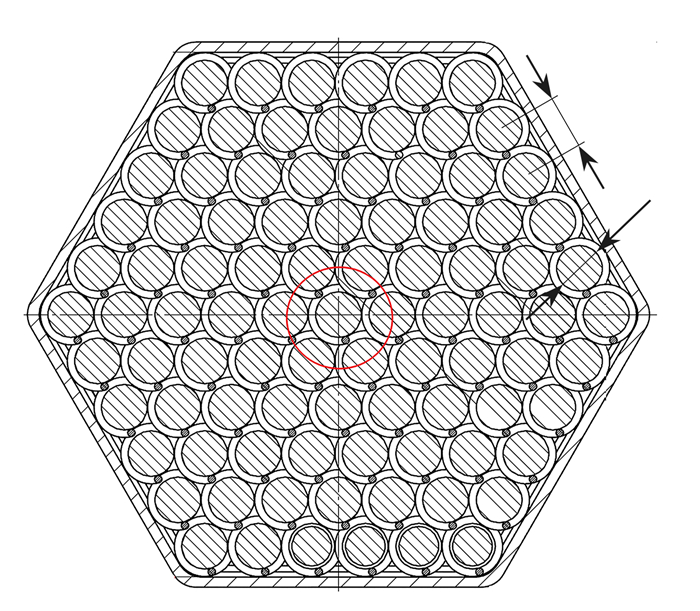

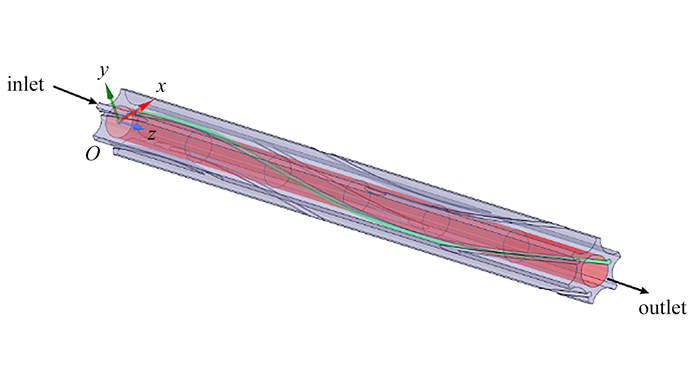

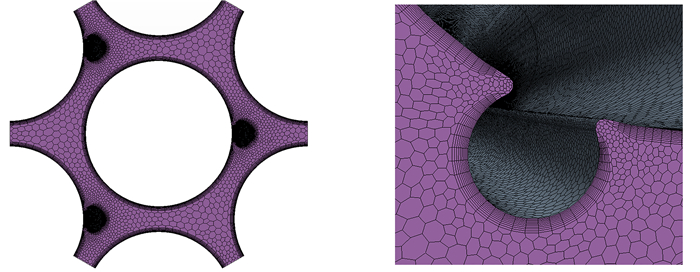

The density and viscosity of liquid lead-bismuth metal are much larger than those of water, which causes nonnegligible flow induced vibration (FIV) and wear problems of fuel assemblies in the reactor. With the fluid-structure coupled analysis method combining the CFD and the FEM, a rapid analysis method for the turbulent vibration responses of wire-wrapped fuel rods was proposed in view of the spatial periodicity and time periodicity. For the space periodic structure of wire-wrapped fuel rods, a single-span flow field model was established, and the lead-bismuth environment fluid excitation load was obtained based on the CFD analysis. From the frequency domain information of the turbulent excitation force PSD, the equivalent time history extrapolation technique was developed to obtain long-duration loads for vibration analysis. With the nonlinear contact between the wire-wrapped fuel rods considered, an FEM model was established to carry out the vibration analysis. The results show that, the axial flow of liquid lead-bismuth causes turbulent vibrations of fuel rods, with a maximum amplitude of 3.83 μm, which meets the engineering design requirement.
- wire-wrapped fuel rod,
- flow induced vibration,
- turbulent vibration,
- lead-bismuth fluid environment

FullText(HTML)

References(13)

References

[2]MERZARI E, FISCHER P, YUAN H, et al. Benchmark exercise for fluid flow simulations in a liquid metal fast reactor fuel assembly[J]. Nuclear Engineering and Design,2016,298: 218-228.

FISCHER P, LOTTES J, SIEGEL A. Large eddy simulation of wire-wrapped fuel pins Ⅰ: hydrodynamics of a single pin[C]//Joint International Topical Meeting on Mathematics & Computation and Supercomputing in Nuclear Applications. Monterey, California, USA, 2007.

[3]DOVIZIO D, MIKU B, SHAMS A, et al. Validating RANS to predict the flow behavior in wire-wrapped fuel assemblies[J]. Nuclear Engineering and Design,2020,356: 110376.

[4]BROCKMEYER L, MERZARI E, SOLBERG J, et al. One-way coupled simulation of FIV in a 7-pin wire-wrapped fuel pin bundle[J]. Nuclear Engineering and Design,2020,356: 110367.

[5]DOLFEN H, DE RIDDER J, BROCKMEYER L, et al. A multi-stage approach of simulating turbulence-induced vibrations in a wire-wrapped tube bundle for fretting wear prediction[J]. Journal of Fluids and Structures,2022,109: 103460.

[6]吴立村, 陆道纲, 刘雨, 等. 绕丝定位的燃料棒流致振动机理研究[J]. 核动力工程, 2015,36(2): 147-150.(WU Licun, LU Daogang, LIU Yu, et al. Investigation on flow-induced vibration mechanism of fuel rods fixed by wrapped wire[J]. Nuclear Power Engineering,2015,36(2): 147-150. (in Chinese))

[7]刘雨, 陆道纲, 汪喆, 等. 超临界水堆燃料棒流致振动简化模型[J]. 核科学与工程, 2017,37(3): 362-366.(LIU Yu, LU Daogang, WANG Zhe, et al. A simplified model for flow induced vibration of SCWR fuel rods[J]. Nuclear Science and Engineering,2017,37(3): 362-366. (in Chinese))

[8]黑宝平, 高付海, 李晓轩. 轴向流动液态钠中燃料元件的振动响应分析[J]. 地震工程与工程振动, 2017,37(4): 189-193.(HEI Baoping, GAO Fuhai, LI Xiaoxuan. Analysis of vibration response of fuel pin induced by liquid sodium in axial flow[J]. Earthquake Engineering and Engineering Dynamics,2017,37(4): 189-193. (in Chinese))

[9]PAIDOUSSIS M P. Vibration of flexible cylinders with supported ends, induced by axial flow[J]. Proceedings of the Institution of Mechanical Engineers,1965,180(10): 268-279.

[10]冯志鹏, 臧峰刚, 张毅雄. 三维横向流体诱发直管振动的数值模拟[J]. 应用数学和力学, 2013,34(12): 1311-1320.(FENG Zhipeng, ZANG Fenggang, ZHANG Yixiong. Numerical simulation of uniform tube vibration induced by 3-dimensional cross-flow[J]. Applied Mathematics and Mechanics,2013,34(12): 1311-1320. (in Chinese))

[11]ZHAO Xielin, CHENG Qian, YU Xiaofei, et al. Modal analysis of lead-bismuth eutectic flow in a single wire-wrapped rod channel[J]. Annals of Nuclear Energy,2023,191: 109918.

[12]PETTIGREW M J, TAYLOR C E. Vibration analysis of shell-and-tube heat exchangers: an overview, part 1: flow, damping, fluidelastic instability[J]. Journal of Fluids and Structures,2003,18(5): 469-483.

[13]DE SANTIS D, SHAMS A. Analysis of flow induced vibrations and static deformations of fuel rods considering the effects of wire spacers and working fluids[J]. Journal of Fluids and Structures,2019,84: 440-465.
