An Analytical Method for Vertical Additional Stresses and Displacements in 3-Layer Ground Under Rectangular Uniform Load

LIANG Yao; NI Ruisi; XIAO Shiguo; HE Gang; WU Bing

doi:10.21656/1000-0887.450342

Volume 47 Issue 2

Feb. 2026

Turn off MathJax

Article Contents

Article Navigation > Applied Mathematics and Mechanics > 2026 > 47(2): 158-177

LIANG Yao, NI Ruisi, XIAO Shiguo, HE Gang, WU Bing. An Analytical Method for Vertical Additional Stresses and Displacements in 3-Layer Ground Under Rectangular Uniform Load[J]. Applied Mathematics and Mechanics, 2026, 47(2): 158-177. doi: 10.21656/1000-0887.450342

Citation:

PDF( 5159 KB)

An Analytical Method for Vertical Additional Stresses and Displacements in 3-Layer Ground Under Rectangular Uniform Load

doi: 10.21656/1000-0887.450342

LIANG Yao^1
,,
NI Ruisi²,
XIAO Shiguo^{2
,
,},
HE Gang³,
WU Bing¹

1.
Sichuan Communication Surveying & Design Institute Co., Ltd., Chengdu 610017, P.R.China
2.
School of Civil Engineering, Southwest Jiaotong University, Chengdu 610031, P.R.China
3.
China Railway Eryuan Engineering Group Co., Ltd., Chengdu 610031, P.R.China

Received Date: 2024-12-30
Rev Recd Date: 2025-04-02
Publish Date: 2026-02-01

Abstract

Abstract

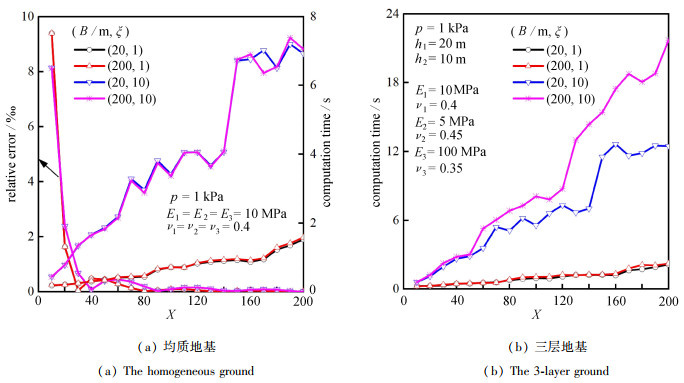

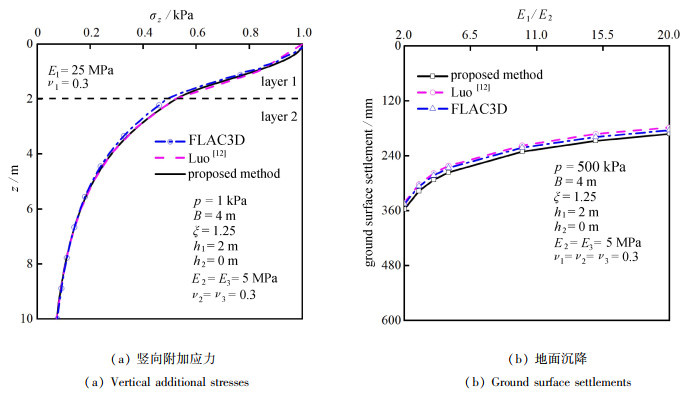

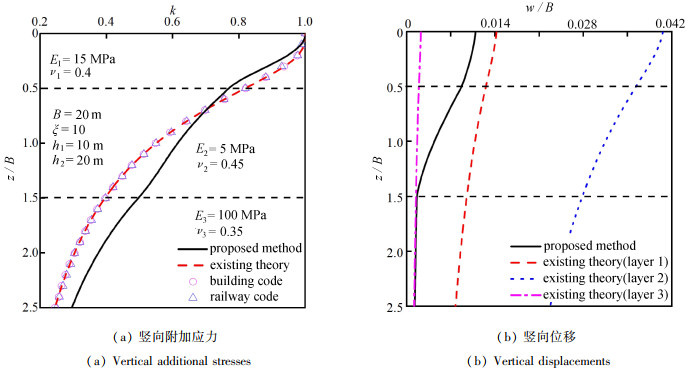

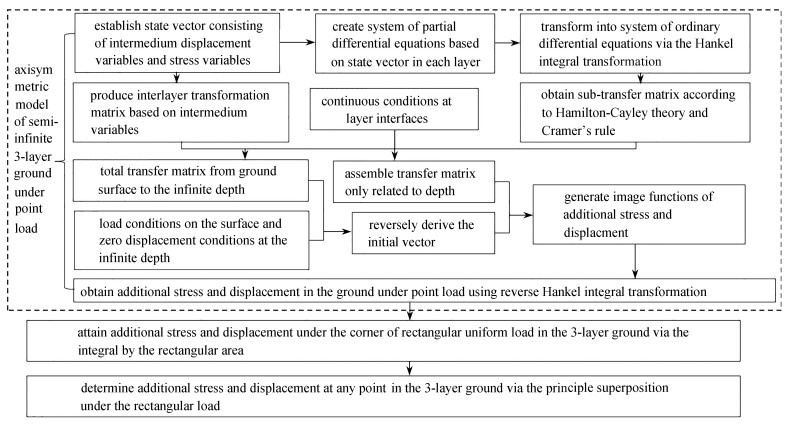

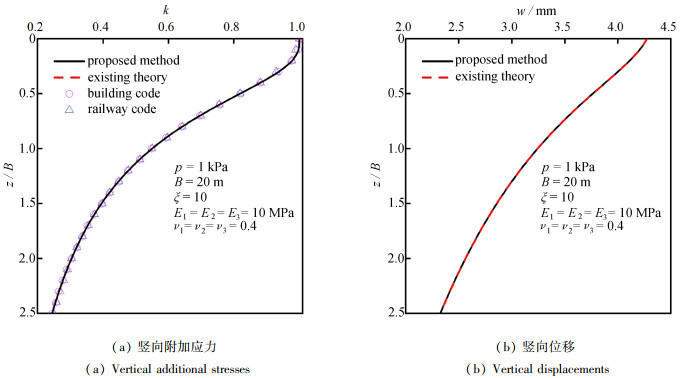

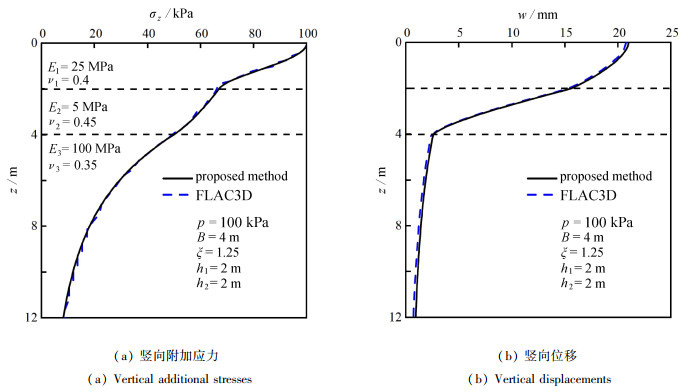

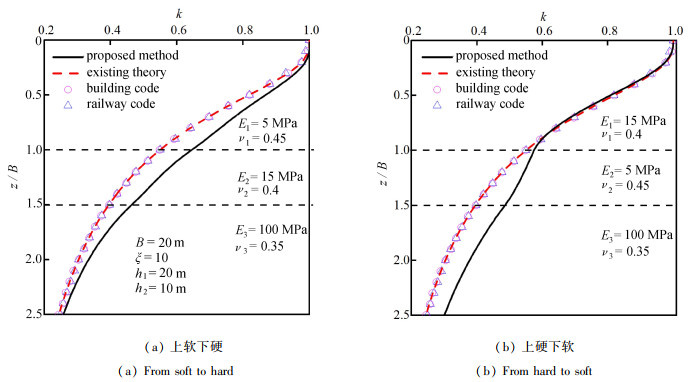

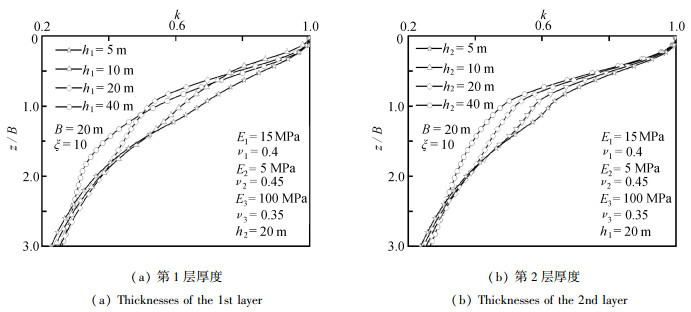

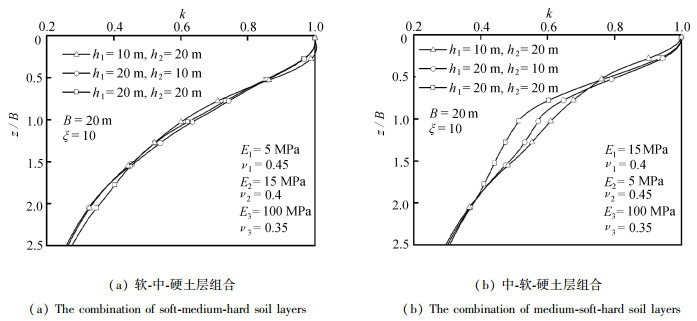

The existing theoretical methods cannot reasonably and practicably analyze vertical additional stresses and displacements in a 3-layer ground, which is common in actual engineering. To solve this theoretical calculation problem, a semi-infinite layered elastic model for the 3-layer ground was established based on the elastic theory. According to the proposed transformation of intermedium variables, the state space theory and the Hankel integral transformation, the closed-form analytical solutions to the vertical additional stresses and displacements under a rectangular uniform load on the 3-layer ground, were deduced. Also, an effective numerical calculation tactic was provided to carry out the proposed method to avoid the possible numerical overflow. Meanwhile, an approach for the integral upper bound to obtain the high-accuracy numerical results of the settlements at the ground surface and the vertical stresses and displacements in the ground was put forward. Analytical results of some examples show that, the proposed solutions agree well with the numerical results via FLAC3D, and the error between the proposed model and the finitely deep foundation model based on China codes is about 8%. If the 1st layer thickness of the multi-layer ground with greatly different 3 layers is larger than the load width, the error of the additional stresses calculated according to the current codes will be very high. As for the ground sequentially including medium, soft and hard layers from the surface, the proposed solutions are obviously less than those obtained with the traditional method for homogeneous ground within the range where the ratio of the soil depth to the load width is not more than 0.75. If the soil depth is over the range, the traditional method will underestimate the additional stress in the ground. Moreover, the proposed method reveals that the thicknesses of the upper 2 layers have a great influence on the additional stresses in the upper and middle areas of the ground, and the stress dispersion efficiency along the depth evidently increase with the thickness of the 1st layer under the surface.
- multi-stratum ground,
- additional stress,
- rectangular uniform load,
- semi-infinite elastic body,
- vertical displacement

FullText(HTML)

References(18)

References

[1]	建筑地基基础设计规范: GB 50007—2011[S]. 北京: 中国计划出版社, 2012. Code for design of building foundation: GB 50007—2011[S]. Beijing: China Planning Press, 2012. (in Chinese)
[2]	铁路部第三勘测设计院. 铁路桥涵地基和基础设计规范: TB 10002.5—2005[S]. 北京: 中国铁道出版社, 2005. The Third Survey and Design Institute of the Ministry of Railways. Code for design on subsiul and foundation of railway bridge and culvert: TB 10002.5—2005[S]. Beijing: China Railway Publishing House, 2005. (in Chinese)
[3]	BIOT M A. Effect of certain discontinuities on the pressure distribution in a loaded soil[J]. Physics, 1935, 6(12): 367-375. doi: 10.1063/1.1745279
[4]	BURMISTER D M, PALMER L A, BARBER E S, et al. The theory of stress and displacements in layered systems and applications to the design of airport runways[J]. Highway Research Board Proceedings, 1944, 23: 126-148.
[5]	BUFLER H. Theory of elasticity of a multilayered medium[J]. Journal of Elasticity, 1971, 1(2): 125-143. doi: 10.1007/BF00046464
[6]	BAHAR L Y. Transfer matrix approach to layered systems[J]. Journal of the Engineering Mechanics Division, 1972, 98(5): 1159-1172. doi: 10.1061/JMCEA3.0001660
[7]	王凯. N层弹性连续体系在圆形均布垂直荷载作用下的力学计算[J]. 土木工程学报, 1982, 15(2): 65-76. WANG Kai. Stress and displacement analyses of a N-layer elastic-continuous system under vertical load uniformly distributed on a circular area[J]. China Civil Engineering Journal, 1982, 15(2): 65-76. (in Chinese)
[8]	王凯. 层状弹性体系力学及其应用[J]. 力学与实践, 2021, 43(4): 555-566. WANG Kai. Layered elastic system mechanics and its applications[J]. Mechanics in Engineering, 2021, 43(4): 555-566. (in Chinese)
[9]	钟阳, 王哲人, 郭大智. 求解多层弹性半空间轴对称问题的传递矩阵法[J]. 土木工程学报, 1992, 25(6): 37-43. ZHONG Yang, WANG Zheren, GUO Dazhi. The transfer matrix method for solving axisymmetrical problems in mutilayered elastic half space[J]. China Civil Engineering Journal, 1992, 25(6): 37-43. (in Chinese)
[10]	钟阳, 王哲人, 郭大智, 等. 求解多层弹性半空间非轴对称问题的传递矩阵法[J]. 土木工程学报, 1995, 28(1): 66-72. ZHONG Yang, WANG Zheren, GUO Dazhi, et al. Transfer matrix method for solving non axisymmetrical problems in multilayered elastic half space[J]. China Civil Engineering Journal, 1995, 28(1): 66-72. (in Chinese)
[11]	钟阳, 张永山. 求解多层弹性半空间轴对称问题的精确刚度矩阵法[J]. 力学季刊, 2003, 24(3): 395-400. ZHONG Yang, ZHANG Yongshan. Explicit solution for axisymmetrical multilayered elastic half space problems by exact stiffness matrix method[J]. Chinese Quarterly of Mechanics, 2003, 24(3): 395-400. (in Chinese)
[12]	罗世毅. 水平层状地基中附加应力与沉降计算分析[D]. 西安: 长安大学, 2003. LUO Shiyi. The calculation of additional stress and settlement for the foundation of multilayered horizional soil[D]. Xi'an: Chang'an University, 2003. (in Chinese)
[13]	陈光敬, 赵锡宏, 于立. 成层横观各向同性体非轴对称问题的解析解[J]. 同济大学学报(自然科学版), 1998, 26(5): 522-527. CHEN Guangjing, ZHAO Xihong, YU Li. Transferring matrix method for solutions of non-axisymmetric load applied to layered cross-anisotropic elastic body[J]. Journal of Tongji University (Natural Science), 1998, 26(5): 522-527. (in Chinese)
[14]	王有凯, 牛婷婷. 直角坐标系下层状地基力学计算中的传递矩阵技术[J]. 工程力学, 2007, 24(S1): 83-86. WANG Youkai, NIU Tingting. The method of transferring matrix for multi-layered half space elastic problems in rectangular coordinate system[J]. Engineering Mechanics, 2007, 24(S1): 83-86. (in Chinese)
[15]	艾智勇, 杨轲舒. 横观各向同性层状地基上弹性矩形板的参数研究[J]. 岩土工程学报, 2016, 38(8): 1442-1446. AI Zhiyong, YANG Keshu. Parametric study on an elastic rectangle plate on transversely isotropic multi-layered soils[J]. Chinese Journal of Geotechnical Engineering, 2016, 38(8): 1442-1446. (in Chinese)
[16]	陈亮, 余飞. 互层地基附加应力计算深度及影响因素[J]. 土木工程与管理学报, 2017, 34(1): 67-71. CHEN Liang, YU Fei. Calculating depth of additional stress and its influencing factors in multi-layered foundation[J]. Journal of Civil Engineering and Management, 2017, 34(1): 67-71. (in Chinese)
[17]	胡文锋, 冯金胜, 孟侨, 等. 一般边界条件下层合圆柱壳轴对称弯曲的精确解[J]. 应用数学和力学, 2025, 46(7): 867-881. doi: 10.21656/1000-0887.450139 HU Wenfeng, FENG Jinsheng, MENG Qiao, et al. Exact solutions for axisymmetric bending of laminated cylindrical shells with general boundary conditions[J]. Applied Mathematics and Mechanics, 2025, 46(7): 867-881. (in Chinese) doi: 10.21656/1000-0887.450139
[18]	郭大智, 冯德成. 层状弹性体系力学[M]. 哈尔滨: 哈尔滨工业大学出版社, 2001. GUO Dazhi, FENG Decheng. Mechanics of Layered Elastic Systems[M]. Harbin: Harbin Institute of Technology Press, 2001. (in Chinese)
