细观等效理论预测再生混凝土宏观力学参数

陈海玉 徐福卫

陈海玉,徐福卫. 细观等效理论预测再生混凝土宏观力学参数 [J]. 应用数学和力学,2022,43(07):1-11 doi: 10.21656/1000-0887.420079
引用本文: 陈海玉,徐福卫. 细观等效理论预测再生混凝土宏观力学参数 [J]. 应用数学和力学,2022,43(07):1-11 doi: 10.21656/1000-0887.420079
Haiyu CHEN, Fuwei XU. Mesoscopic Equivalence Theory Predicts the Macroscopic Mechanical Properties of Recycled Aggregate Concrete[J]. Applied Mathematics and Mechanics. doi: 10.21656/1000-0887.420079
Citation: Haiyu CHEN, Fuwei XU. Mesoscopic Equivalence Theory Predicts the Macroscopic Mechanical Properties of Recycled Aggregate Concrete[J]. Applied Mathematics and Mechanics. doi: 10.21656/1000-0887.420079

细观等效理论预测再生混凝土宏观力学参数

doi: 10.21656/1000-0887.420079
基金项目: 湖北省教育厅中青年科学技术研究计划指导性项目(B2021214)
详细信息
    作者简介:

    陈海玉(1980—),女,讲师,硕士(E-mail:49633110@qq.com

    徐福卫(1976—),男,教授,硕士(通讯作者. E-mail:10916@hbuas.edu.cn

  • 中图分类号: TU528.1; O341

Mesoscopic Equivalence Theory Predicts the Macroscopic Mechanical Properties of Recycled Aggregate Concrete

  • 摘要: 预测分析再生混凝土各组分对再生混凝土宏观力学参数的影响是开展再生混凝土基本力学性能的一种方式。为了分析再生混凝土各组分对再生混凝土宏观力学参数的影响,根据再生混凝土的细观结构组成,建立了细观等效模型,利用扭转变形、细观夹杂理论、弹性等效思想和M-T模型方法,推导了由原生骨料、老界面层、老水泥砂浆、新界面层和新水泥砂浆等组成的再生混凝土的宏观力学参数预测模型。预测结果表明,随着再生骨料的取代率增加,水泥砂浆的含量不断增加,再生混凝土孔隙率也随之增大,导致再生混凝土的Poisson比随之增大,弹性模量、剪切模量和体积模量不断降低。模型的预测结果能较好地反映了再生混凝土宏观力学参数随再生骨料取代率的增加不断变化的这一趋势,也为再生混凝土宏观力学参数的预测提供了一条简单实用的新方法,有利于再生混凝土基本力学性能的研究分析。

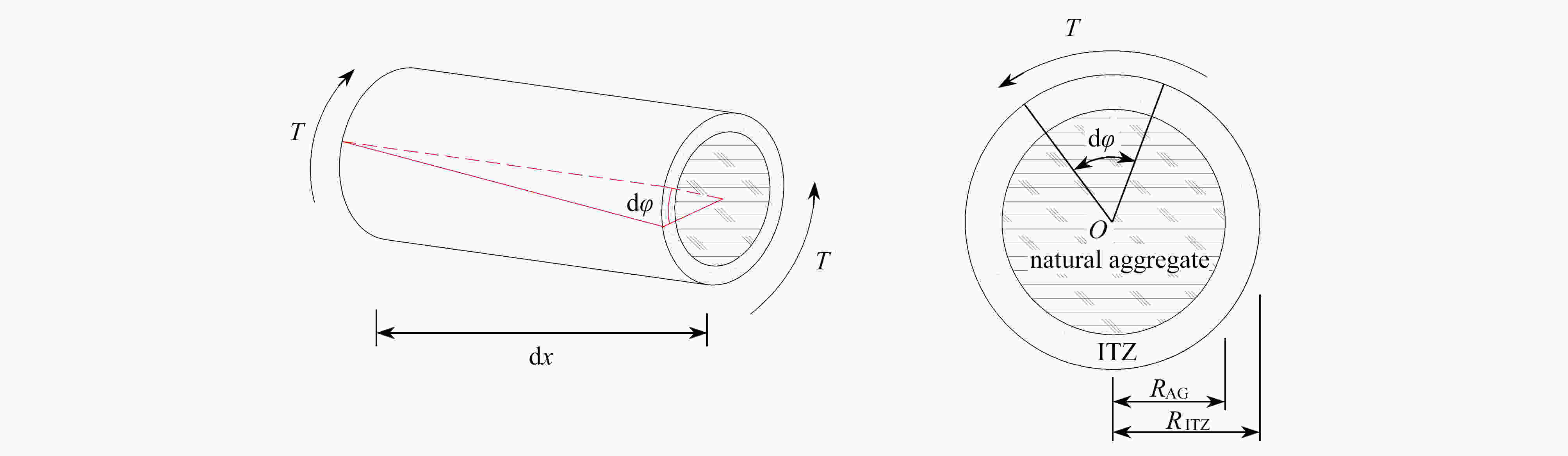

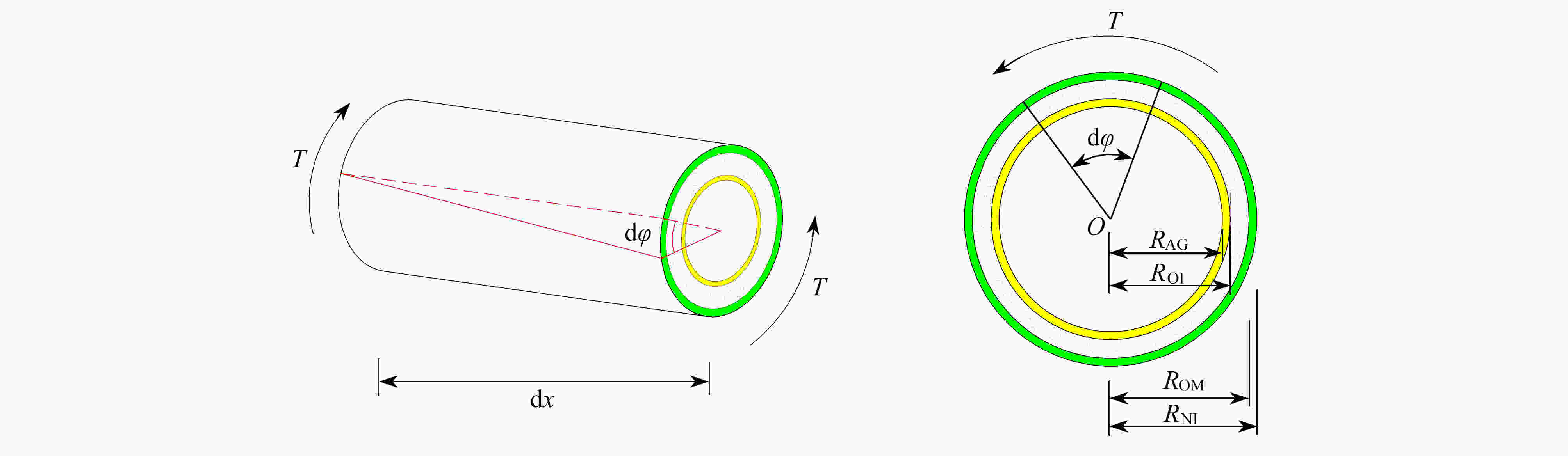

  • 图  1  界面过渡区空心圆柱等效模型

    Figure  1.  Equivalent model of hollow cylinder in interface transition zone

    图  2  界面过渡区均化等效示意图

    Figure  2.  Homogenized equivalent schematic diagram of interface transition zone

    图  3  骨料实心圆柱等效模型

    Figure  3.  Equivalent model of solid cylinder of recycled aggregate

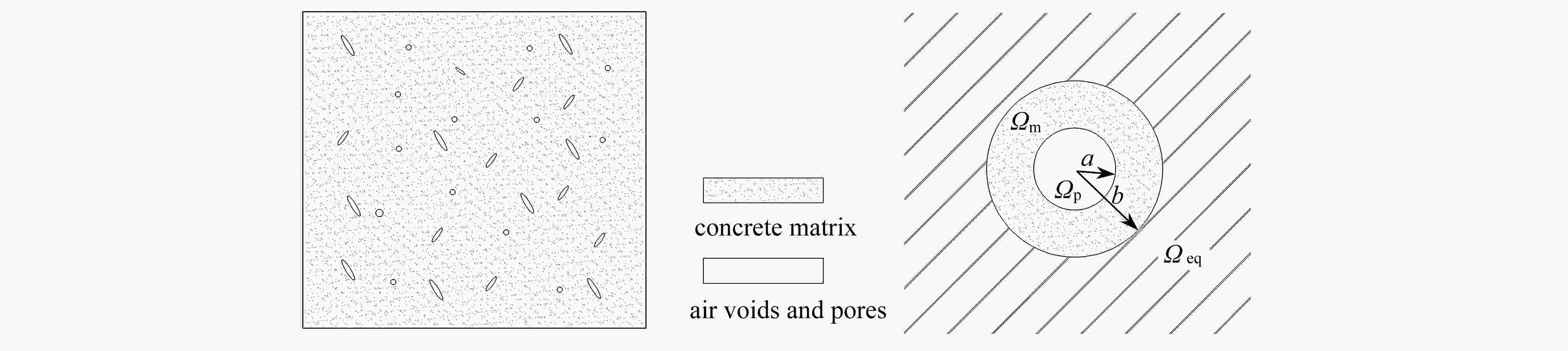

    图  4  多孔水泥砂浆简化模型

    Figure  4.  Simplified model of porous cement mortar

    图  5  空心球模型图

    Figure  5.  Hollow ball model

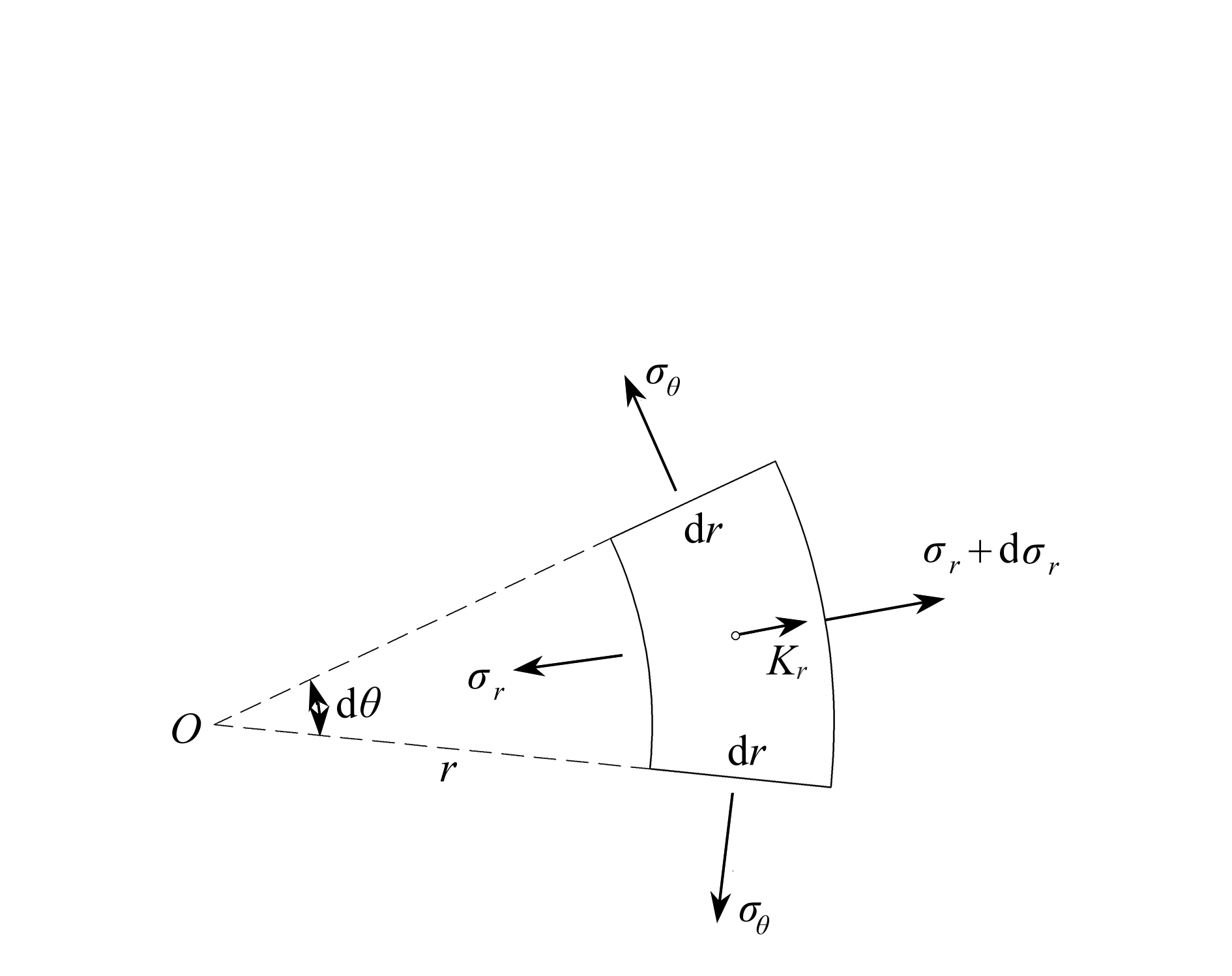

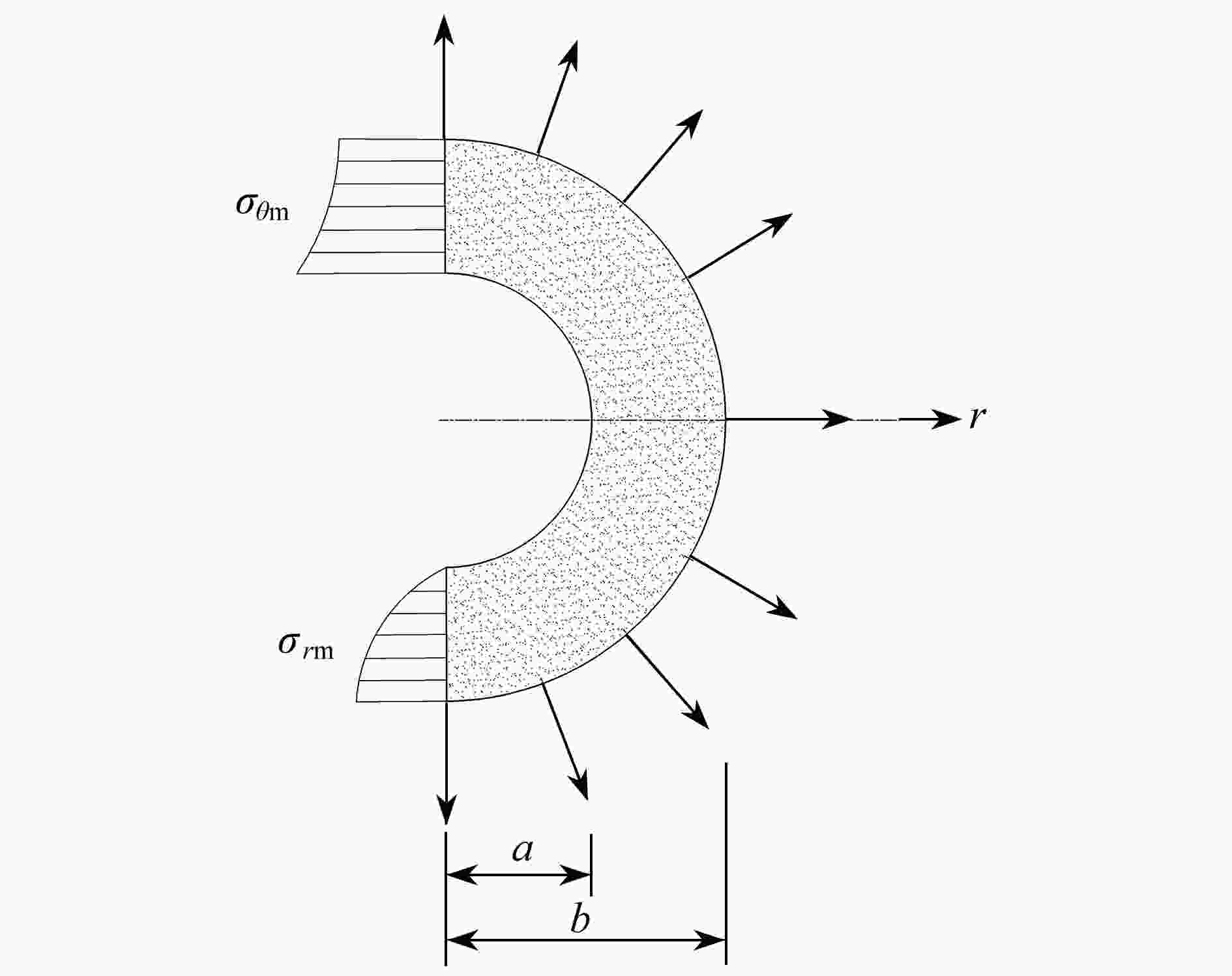

    图  6  微单元的应力状态

    Figure  6.  Stress state of microelement

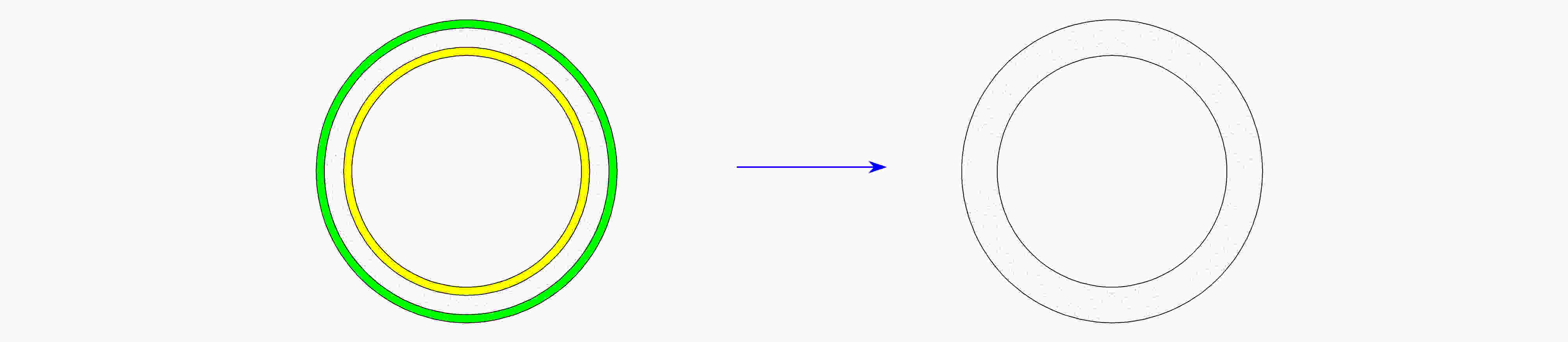

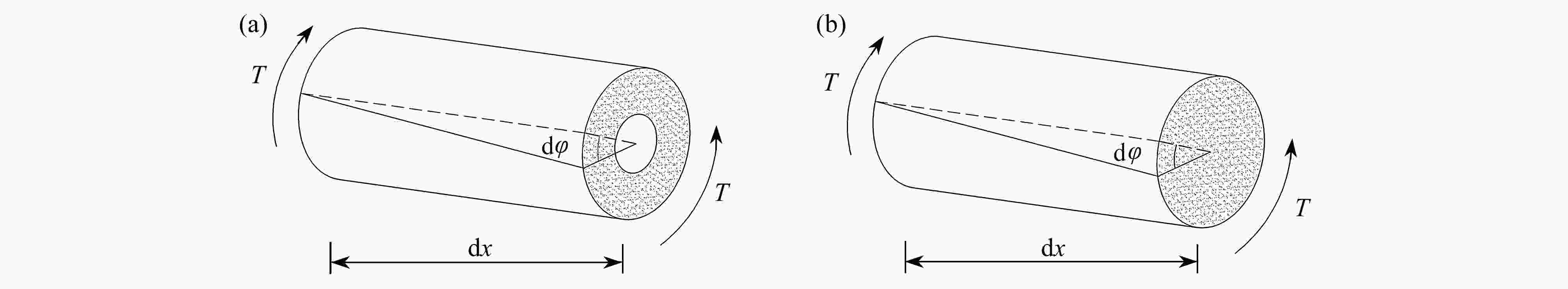

    图  7  再生混凝土空心圆柱等效模型:(a)空心圆柱模型;(b)等效模型

    Figure  7.  Equivalent model of recycled concrete hollow cylinder: (a)the hollow cylinder model; (b)the equivalent model

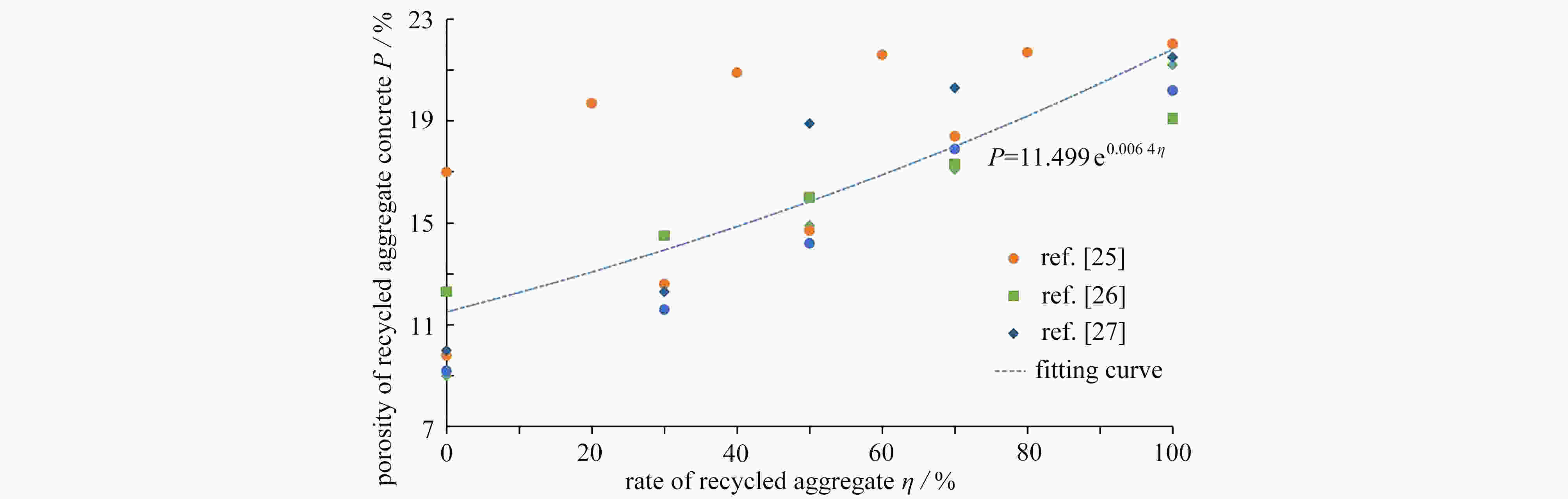

    图  8  再生骨料取代率对再生混凝土孔隙率的影响

    Figure  8.  Effect of replacement rate of recycled aggregate on porosity of recycled aggregate concrete

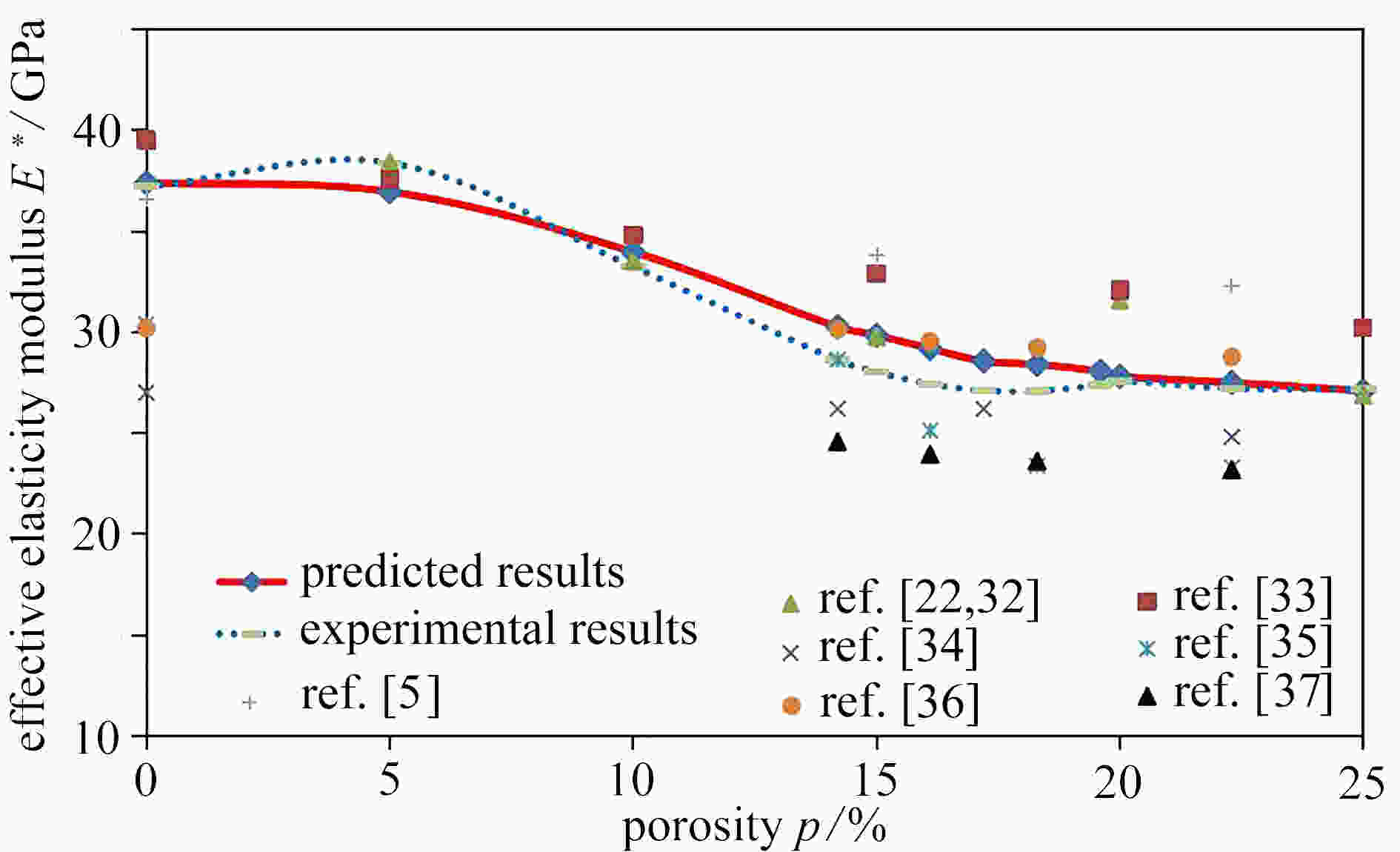

    图  9  等效弹性模量的预测结果与相关文献数据对比情况

    Figure  9.  Prediction results of effective elastic modulus and experimental results of relevant literatures

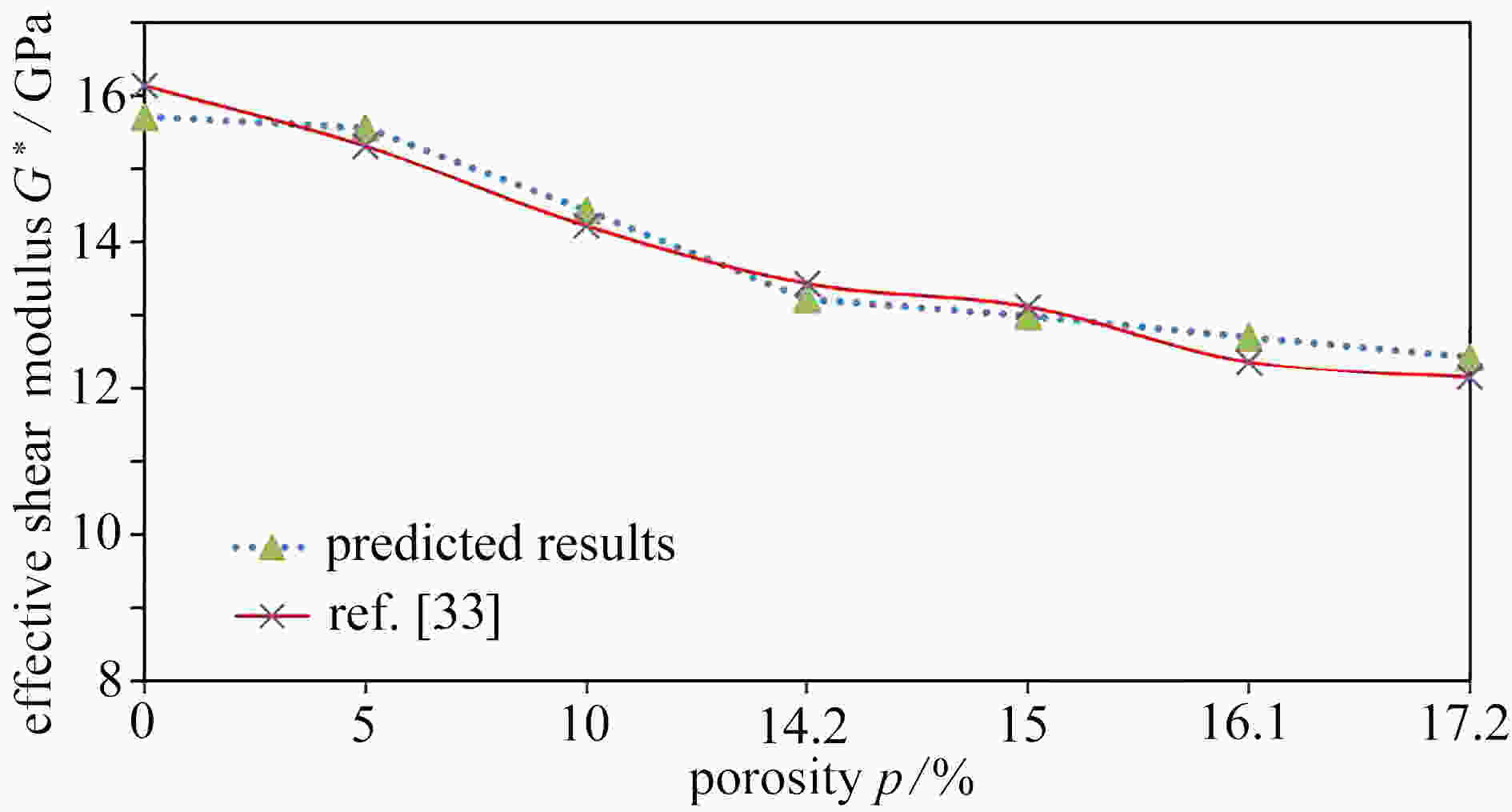

    图  10  等效剪切模量的预测结果与相关文献数据对比情况

    Figure  10.  Prediction results of effective shear modulus and experimental results of relevant literature

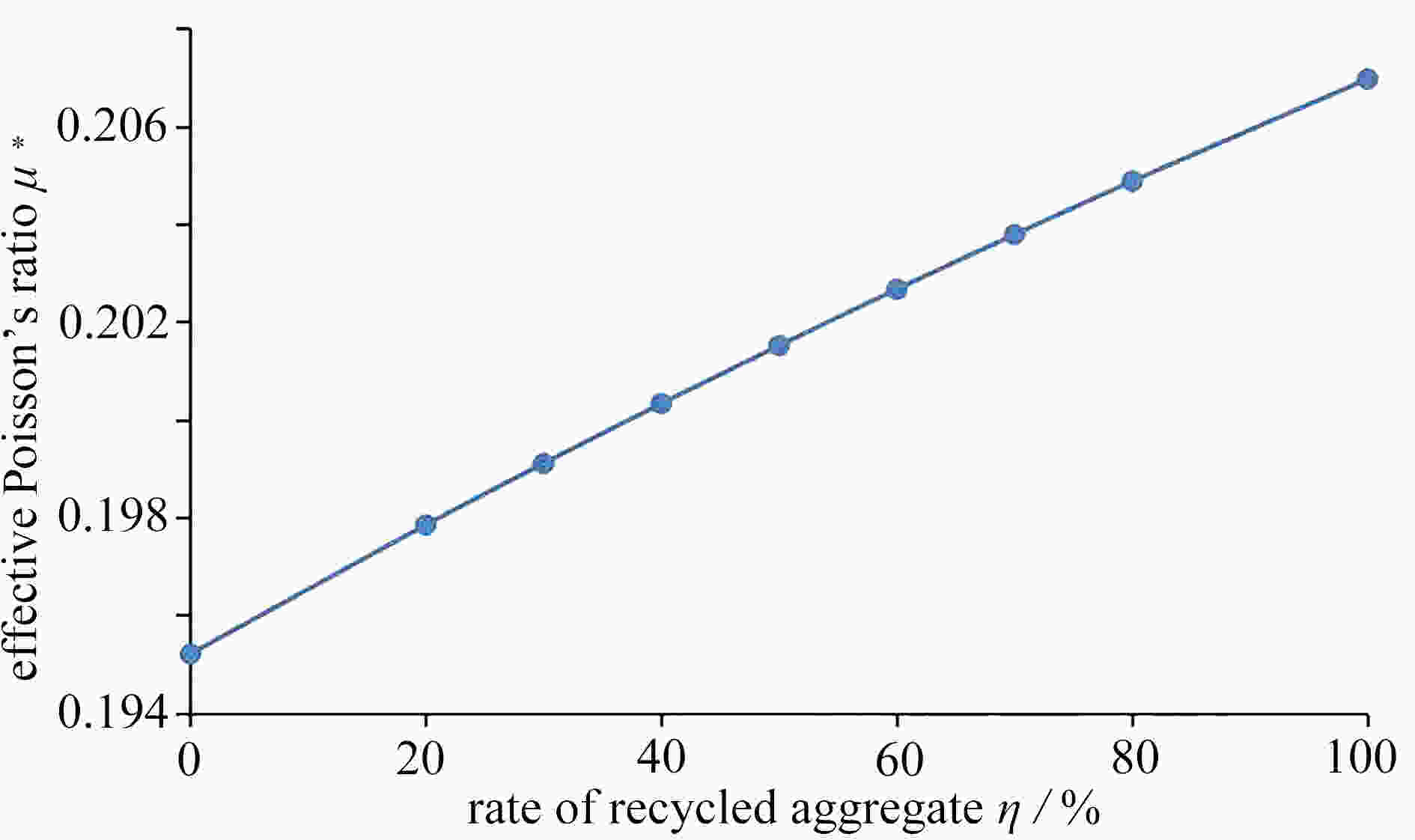

    图  11  孔隙率对再生混凝土等效Poisson比的影响

    Figure  11.  Effect of porosity on effectivePoisson's ratio of recycled aggregate concrete

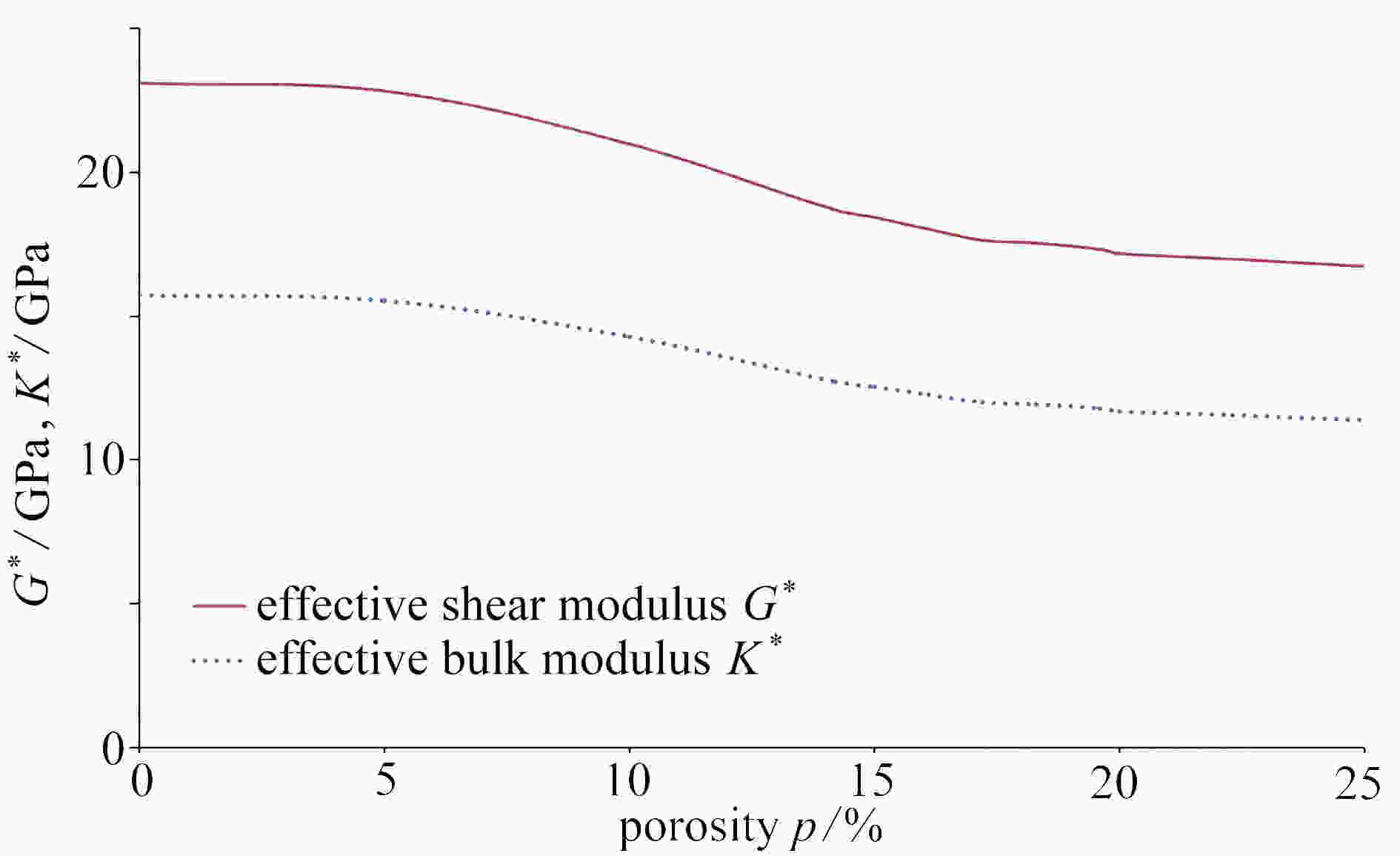

    图  12  孔隙率对再生混凝土等效剪切模量和体积模量的影响
